Evopower Single Phase Kubota Powered Diesel Generator

Please be advised that Evopower Generators have an extended lead time and you may not receive them next day. If you require an Evopower Generator urgently, please call us on 01639 849 847 or email [email protected] and we will check availability on stock then get straight back to you.

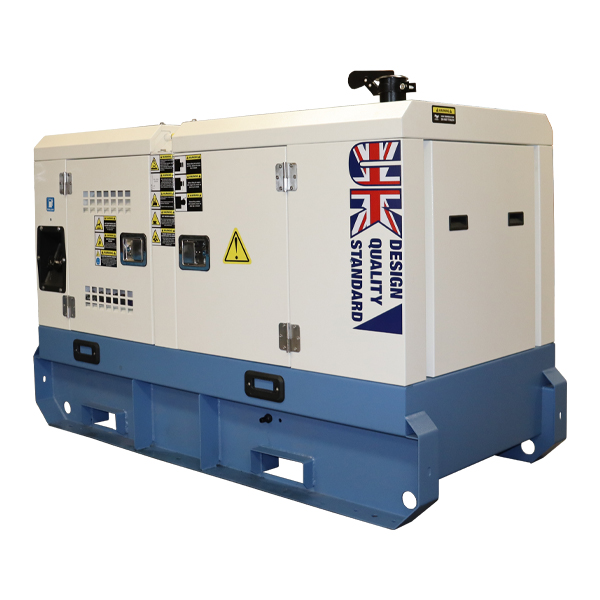

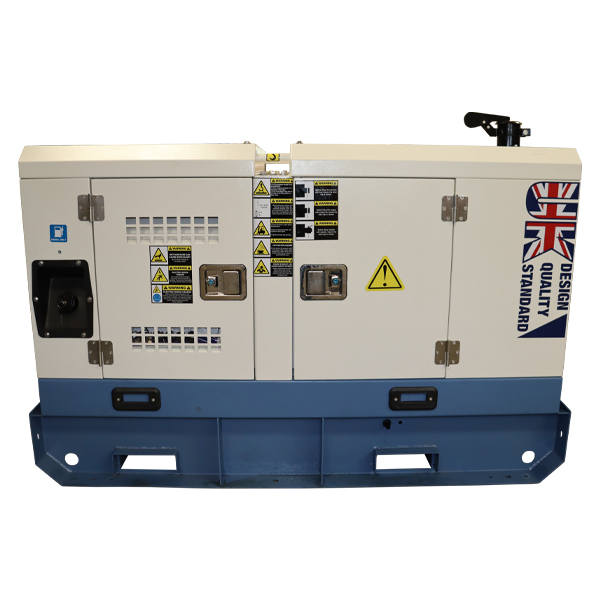

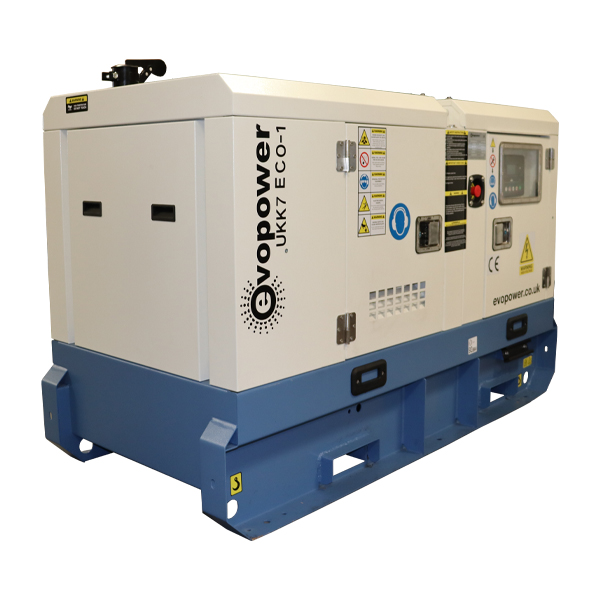

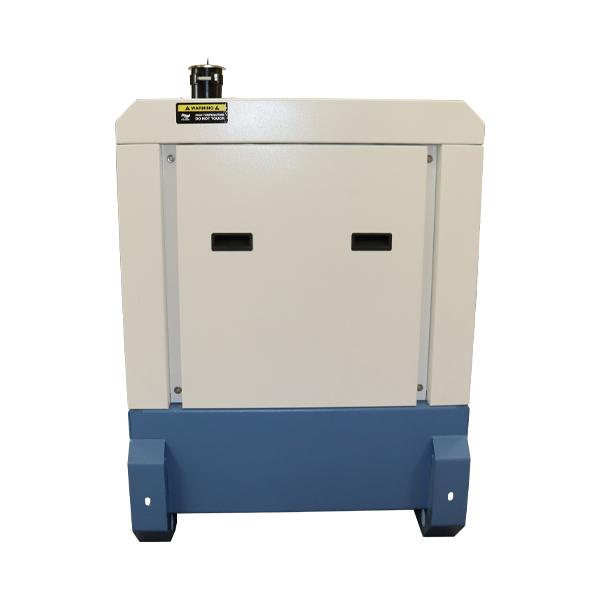

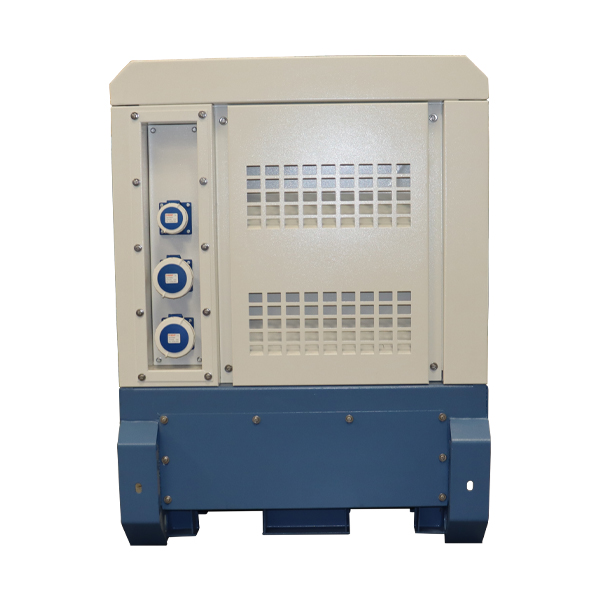

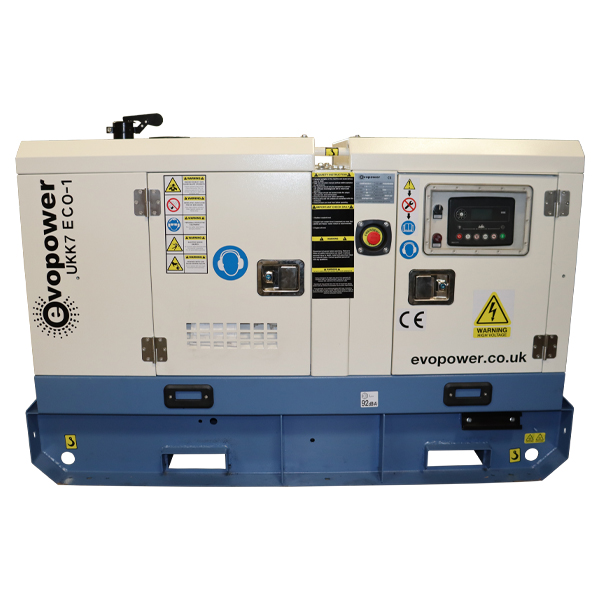

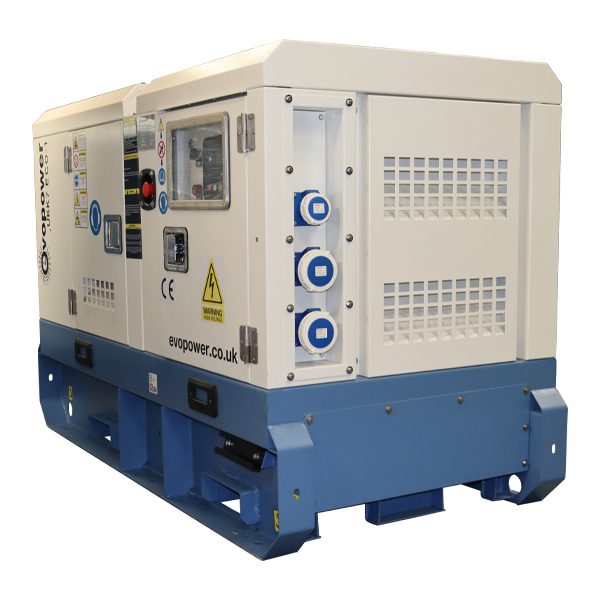

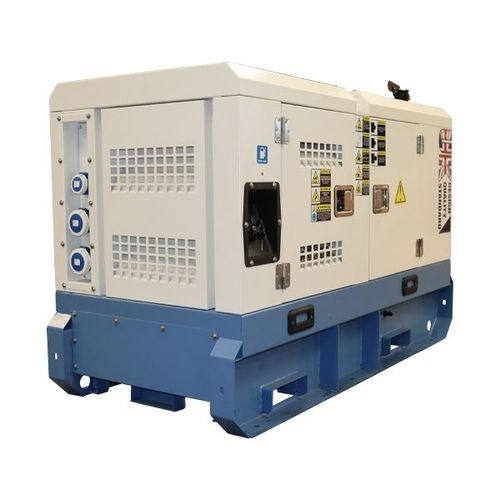

The UKK7ECO-1 is a 230 volt, single-phase 50Hz diesel genset with 7kW standby output and 6kW prime power output. This generator has been designed by Evopower using a high-quality industrial 3-cylinder D905 water-cooled Kubota Diesel Engine.

This ATS compatible generator is part of the Kubota UKK ECO range of single-phase generators between 7kVA and 25kVA for standby and backup purposes – ideal if you are looking for a cost-effective solution to minimise business risk, simply keep your lights on during a power cut or run your home or business off-grid. The compact and robust design of this 1500rpm diesel generator with integrated transport features enables faster and safer transport and installation. 1500rpm generators have slower running, water-cooled engines which are less stressed than the smaller 3000rpm air-cooled generators, which make them a great option if you’re going to use your generator either as backup power or as your main power source.

This powerful generator has a rated sound level of only 75dB at 7m. Noise levels within this genset are kept to a minimum thanks to Kubota’s ETVCS Indirect Injection Combustion System within the engine unit. The UKK7ECO-1 diesel generator has a base fuel tank in the skid of the unit. For peace of mind, both the engine and the generator itself are covered by the Evopower warranty which lasts from 12 months of your date of receipt or after 1000 hours use – whichever occurs first, and a leading 3-year warranty on the Genpower alternator.

This generator uses high-quality components such as the 3-cylinder, inline D905 engine, a quality Genpower GP164C AVR brushless, self-excited alternator, and an advanced Deep Sea Electronics DSE6120 control panel. The brushless alternator reduces risk as there are no brushes to wear through. This prolongs lifespan and prevents downtime.

Powered by a slow-running Kubota D905 3-cylinder diesel engine

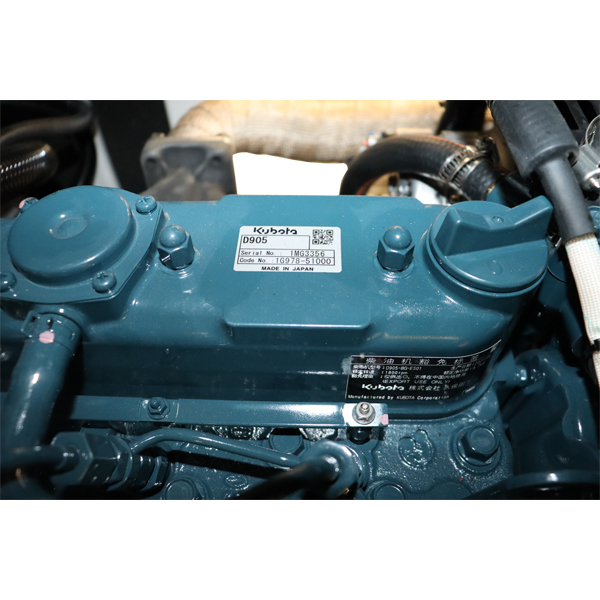

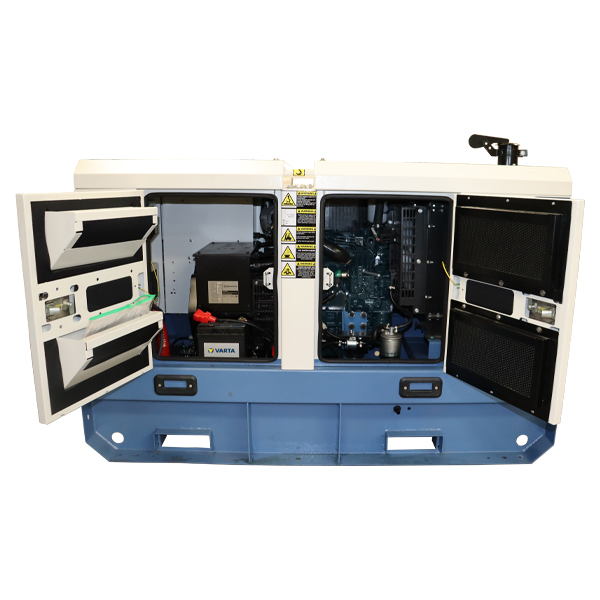

This Kubota UKK7ECO-1 slow-running diesel genset is powered by a water-cooled Kubota D905 3-cylinder engine and is mechanically governed to run at 1500RPM to maintain a stable 50Hz output from the alternator. The AVR protection ensures the output is safe for use with any sensitive electronic equipment. With low piston speed and pressure, as well as its one-piece tunnel block construction, this high-quality engine is both reliable and robust and offers a long service life thanks to its sturdy, industrial design. The engine oil capacity is 5.1L and we recommend using SAE 15W40 oil, and using a 50/50 mix for the coolant/radiator fluid of 50% water and 50% ethylene glycol (anti-freeze).

Controlled by a Deep Sea Electronics DSE6120 MKIII control panel

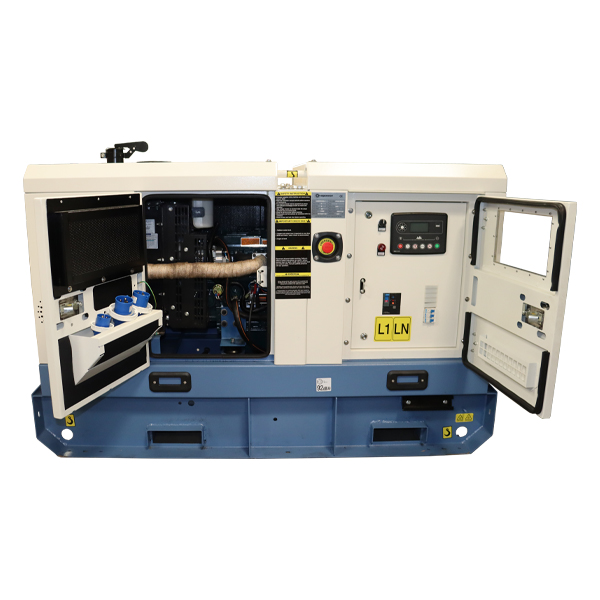

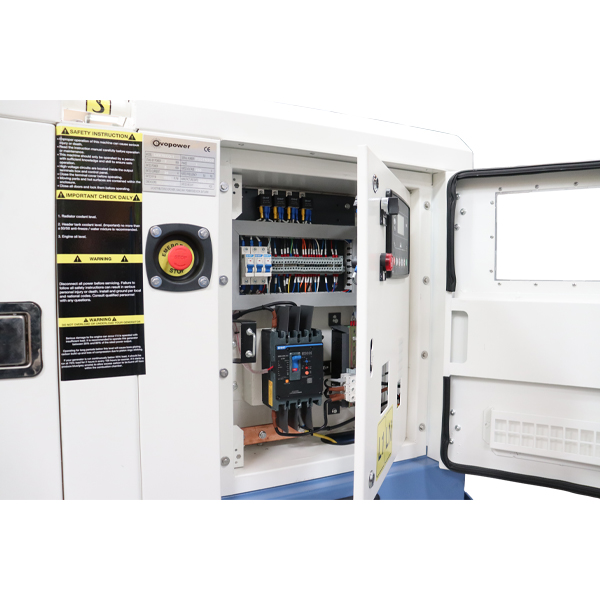

Its high-quality Deep Sea Electronics DSE6120 control panel has a large LCD screen that displays generator information in a clear and concise format. The entire range of Kubota single-phase diesel generators use the same advanced Deep Sea Electronics DSE6120 control panel. The control panel is packed with safety features to protect your slow-running diesel genset, and is compatible with ATS / auto-start / MTS / manual changeover switches. ATS panels automatically transfer your load or house from the mains supply to generator without any interaction needed in the event of a power cut. It also has remote start capability, an easily accessible emergency stop button, a voltage and frequency regulator, as well as alerts for:

• Low oil pressure – which can lead to a lack of lubrication and engine damage
• High water temperature – which could be a sign that the radiator airflow is blocked or the water level is low
• High or low voltage – which could signify a problem with the alternator, AVR, or degrading electrical connections and lead to your equipment being damaged
• High or low frequency or engine over/under speed – which could signify an issue with the fuel regulation/governor and leads to unstable frequency output

Optional extras for the control panel include GSM remote control connection and Ethernet connectivity, so you can monitor the location, safety alerts, warnings and start/stop your generator using your mobile, PC or laptop. Contact us if you would like more information on these options.

Please note that there are certain regulations in certain areas and countries related to noise, fuel storage and emissions. Please make sure you order the correct generator for your region/location.

*2 year limited warranty for Standby Power. 1 year limited warranty for Prime Power.
For full details, please see manufacturer’s Terms and Conditions.

Please note that due to the size and weight of this item, offload will be required via forklift or similar telehandler. This is not included with the delivery and will have to be organised by the customer.
