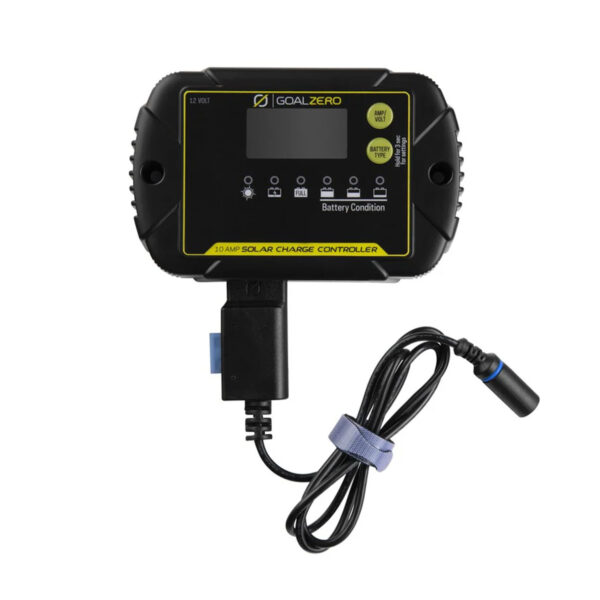

Goal Zero 10A Charge Controller

SKU: GZ96100 Categories: ,
price promise logo

Price includes VAT & Delivery.
Order before 1pm for Express Delivery
(UK Mainland Only) Delivery Details

£69.99 inc VAT

In Stock

Optional Extras
1 × Goal Zero Charge Controller Mounting Bracket £11.99 inc VAT

In Stock

Payment logos

2 Years Warranty

  • Finance

*Please be advised that Goal Zero Products now have an extended lead time and you may not receive them next day. The current delivery time is estimated at 2-5 working days.*

Solar panel and bracket not included.

Monitor and regulate solar input for 12V batteries with the 10 Amp Charge Controller. Designed to integrate seamlessly with Goal Zero solar panels, the charge controller comes with a pre-installed High Power Port and an easy-to-read LED screen. Equipped with an IP65 rating, the charge controller is weather resistant and dustproof, allowing for protection against the elements when powering off-grid adventures or outdoor equipment.

  • Designed to monitor and regulate solar input for 12V batteries. For solar charging with 100 Watts and below, we recommend the 10-Amp Charge Controller. For solar charging with more than 100 Watts, we recommend the 20-Amp Charge Controller.
  • The Charge Controller comes with an integrated 8mm Connector. To connect and charge a 12V battery, you must purchase the Spade to SAE Cable and additional cable adaptors. We recommend either the SAE to Ring Terminal or SAE to Alligator Clip.
  • Will not work with Yeti X Power Supply.

Ports

  • Input/Output terminal: M5 terminals
  • Input Port: Solar Port: (blue, 8mm): 14-22.5V up to 10A
  • Fuse: 15A replaceable

Battery Details

  • Rated solar panel amps GZ-10: 10A
  • Normal input solar cell array voltage: 15-22V
  • Max solar cell array voltage (output has no load): 25V
  • Lowest operating voltage at solar or battery side: 8V Minimum
  • Charging Characteristics:
  • Start Voltage at 25°C: 3-10V
  • Charge Voltage at 25°C:
  • LTO battery: 14.0V
  • Gel battery: 14.1V
  • LiFePO4 battery: 14.4V
  • Charge Voltage at 25°C: AGM battery-14.4V
  • WET battery: 14.7V
  • Calcium battery: 14.9V
  • Equalizing Voltage at 25°C: WET or Calcium battery-15.5V
  • Float Voltage at 25°C:
  • Gel, AGM, WET, Calcium batteries-13.6V
  • LTO and LiFePO4 batteries-13.4V
  • Battery temperature compensation coefficient: -24mV/°C

What’s in the box

  1. 10A Charge Controller
  2. Spade to 8mm Cable
ManufacturerGoal Zero
Product Code GZ96100
IP GradeIP65
Spade to 8mm Cable Length 0.91m
Operating temperature-25 to 50°C/ -13 to 122°F
CertsIC, FCC, CE-EMC, CE-LVD
Weight0.40kg
Dimensions155 x 99 x 26mm
