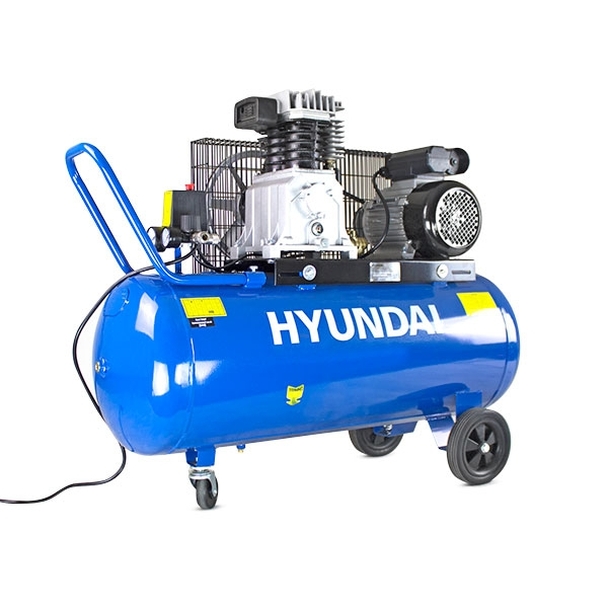

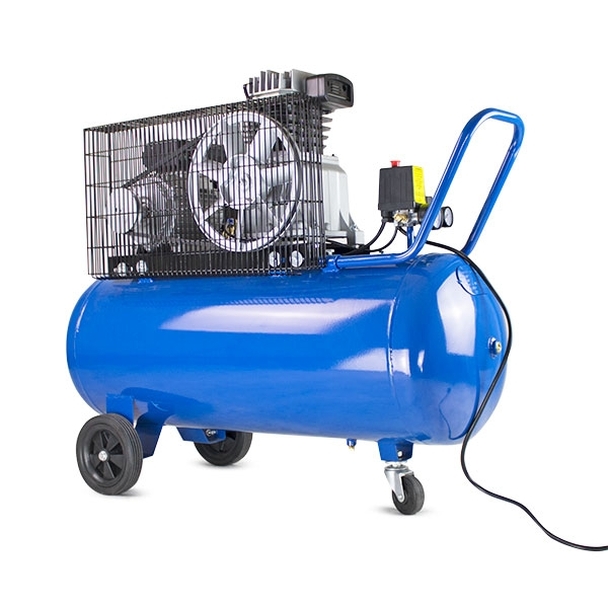

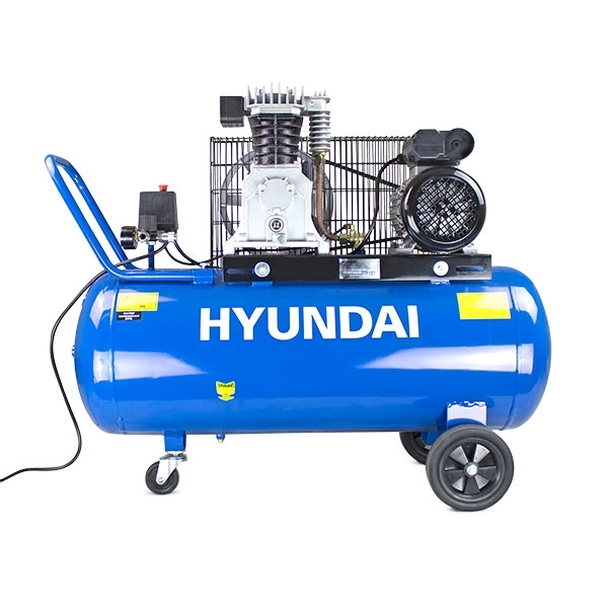

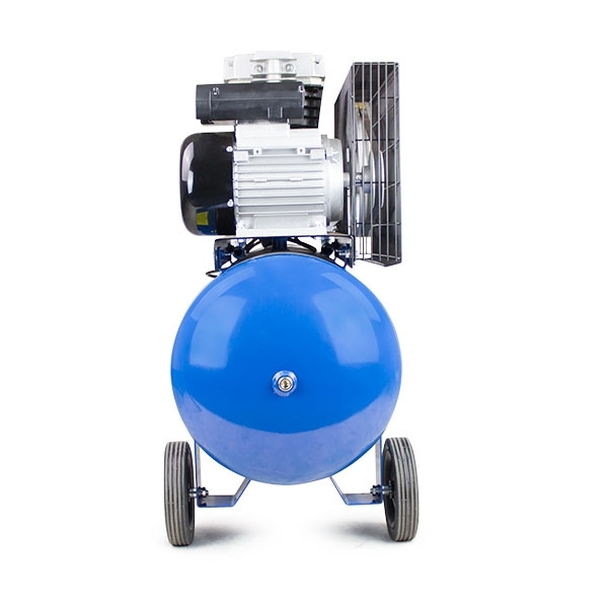

The HY3100P is a powerful 3hp twin cylinder cast iron belt drive air compressor from Hyundai. Designed for professional workshops and trade applications the HY3100P air compressor is ideal for spray-painting, air tools, inflating tyres and perfect for workshops and commercial garages.
Weighing 76kg the HY3100P features 3 wheels for easy movement.
The twin cylinder slow running pump with cast iron cylinders for long life and aluminium cylinder head for improved cooling produces a maximum working pressure of 145psi or 10bar.
The 3hp electric motor can be powered by a 13amp UK 3-pin plug, making it ideal for professional workshop or home garage use where conventional power sockets are available.
The large 100 litre tank capacity provides a constant 11cfm supply of air for air tools. Twin Euro type Q/R air outlets for increased versatility to allow two air-lines / tools to be connected at the same time.

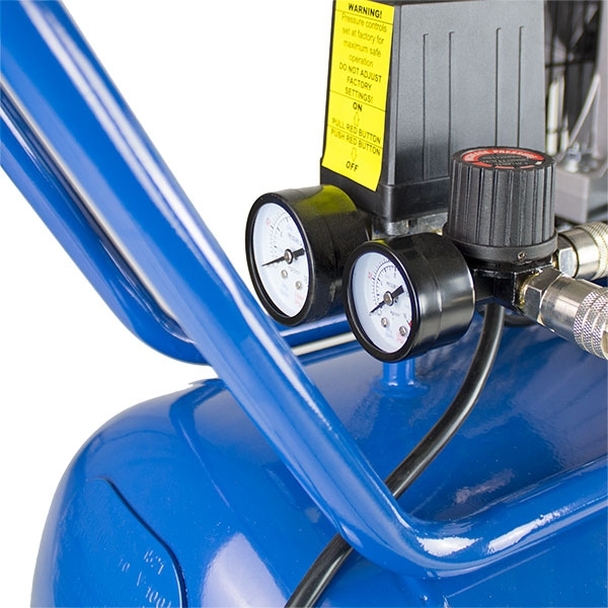

The automatic pressure cut out switch provides user safety with built in safety valve and pressure regulator with twin gauges gives the user controlled variable air pressure. The gauges measure the pressure in the air tank and the air outlet pressure.
This air compressor provides a fantastic combination of performance and durability ideal for professional applications in any workshop.
These compressors have a 2.2kw/2200w/3hp single phase, 230v 50hz electric motor. They are supplied with a 13amp 3 pin plug. The 13 amp plug will be fine for normal DIY use. However, if the air compressor is being used for more than a 50% duty cycle (motor running for more than half the time) it may be advisable to use a blue 16 amp plug.
The compressor should always be plugged directly into the wall socket. If extension leads are used, voltage drop may occur and this will increase the amperage which may cause the 13amp fuse to overload and blow. This may also be a problem in outlying rural areas where the mains voltage is below 230v, in which case a 16amp blue plug is recommended.
|Power Type||13amp Socket|
|Max Working Pressure||145psi (10bar)|
|Air Displacement||14 cfm|
|Air Tank Volume||100 Litres|
|Dimensions(LxWxH)||1060 x 410 x 770mm|
