Hyundai 125Amp 4 Pole ATS Automatic Transfer Switch Package for 3 Phase Diesel Generators
Price includes VAT & Delivery.
Order before 1pm for Express Delivery
(UK Mainland Only) Delivery Details
£1,259.00 inc VAT
In Stock
- Description
- Specifications
- Downloads
- FAQ's
Please be advised that Hyundai ATS packages may now have an extended lead time and there’s a possibility you may not receive them next day. If you require a Hyundai ATS urgently, please call us on 01639 849 847 and we will check availability on next day stock then get straight back to you.

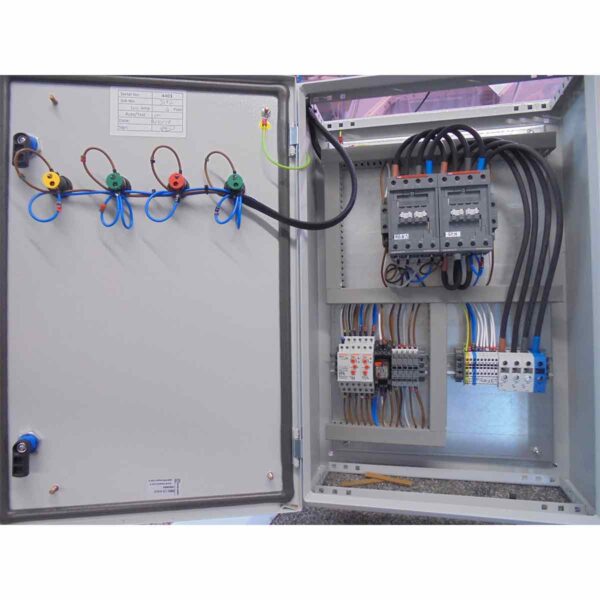

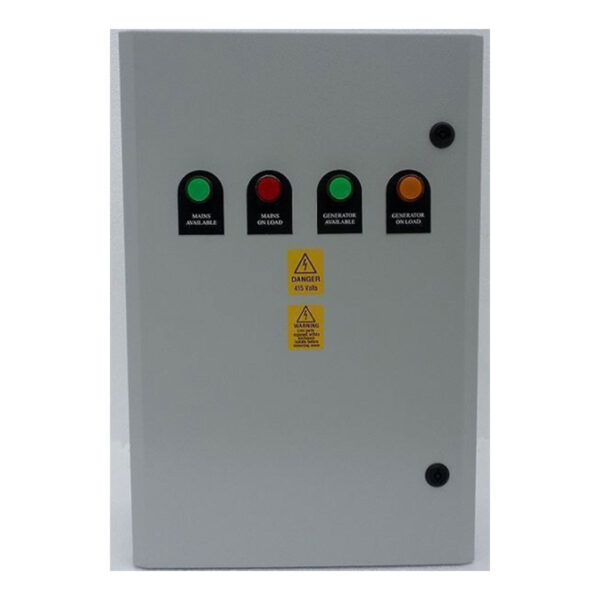

Image for illustrative purposes only (Product may look different from image).
The 125A 4-Pole ATS (Automatic Transfer Switch) is a 4 pole three phase switch, which means it can only be used in conjunction with a three phase generator, up to 125 amps. It’s also easy to install and can be configured by any competent electrician in a very short space of time.
The ATS panel is modified and fitted with a 24v battery charger to keep the battery on your backup generator charged when it is not in use. Sometimes you can go months without having to use a backup generator, and the time it sits idle can run the battery down, so this slight modification is a welcomed addition to an already very appealing ATS system.
This ATS is compatible with the Hyundai DHY85KSE and some of our Evopower three phase sets such as the UKC55ECO and UKC80ECO.
The ATS panel would be installed by your engineer in between the consumer unit and meter at your property. Then, the 20m communication cable is wired from the ATS panel to your generator which can be situated up to 20metres away. This communication cable is what allows the ATS to turn the generator on and off. However, please note this package does not include mains cable (the cable which carries power from the generator). Mains cable needs to be specified by your electrician and sourced accordingly.
This package ensures that even when you are at work, on holiday or away from your home/office, in the event of a power cut your appliances stay on.
- 125Amp ATS Panel
- 1500RPM ATS plug
- 24V Battery Charger
- 4 Pole, 125Amp
- Three Phase
- Fitted with a battery charger to ensure your generator is ready to work even after a long period of inactivity
- Automatically transfers the source of power from the mains to your generator
- Complete automatic transfer package for 3-Phase generators up to 125Amp
- 20metres of communication cable to link the generator to the ATS panel to allow it to be turned on and off via the ATS panel
-
No downloads are available for this product
