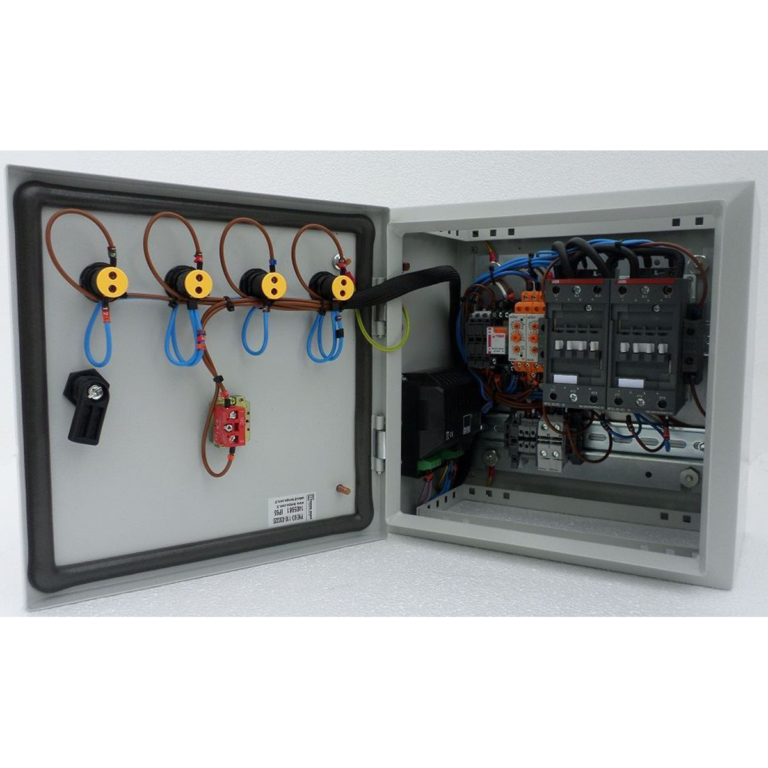

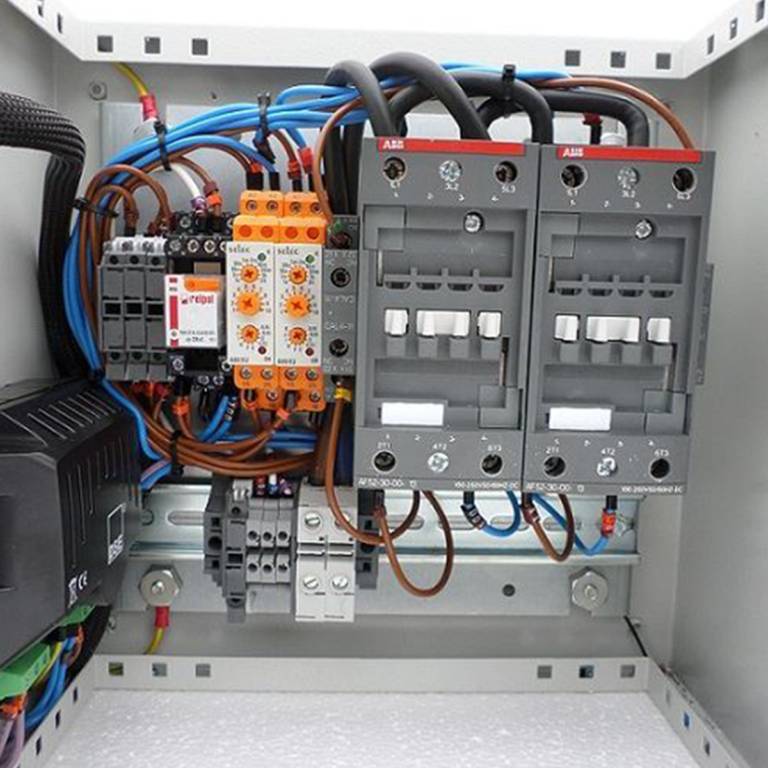

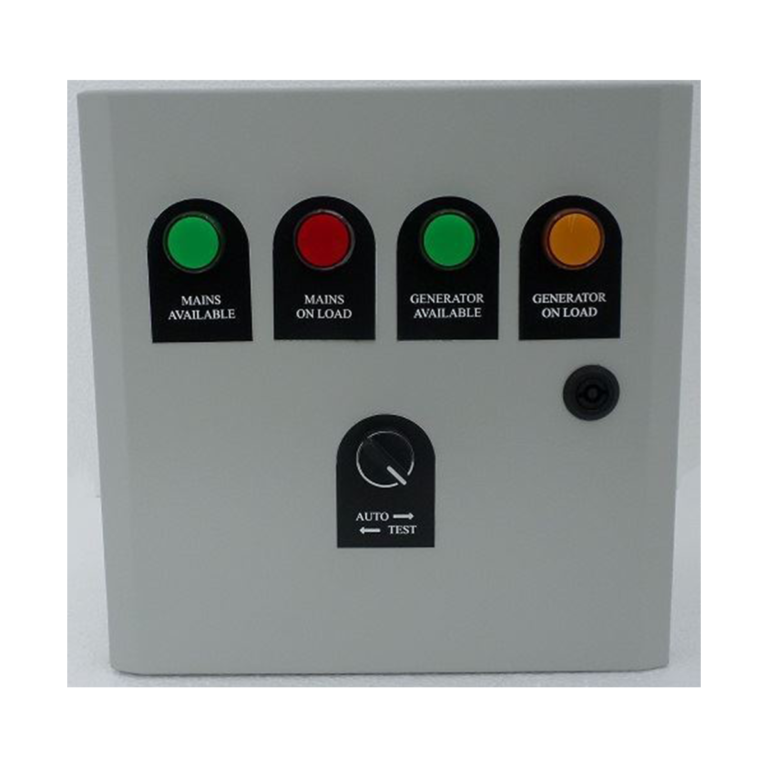

The 100A 3-Pole ATS (Automatic Transfer Switch) is a 3 pole single phase switch, which means it can only be used in conjunction with a single phase generator, up to 100 amps. It’s also easy to install and can be configured by any competent electrician in a very short space of time. The other major benefit of this particular transfer switch is it’s dimensions. It is only 300mm x 300mm x 200mm, ensuring it can be placed easily in a convenient location near your consumer unit.

The ATS panel is modified and fitted with a 12v battery charger to keep the battery on your backup generator charged when it is not in use. Sometimes you can go months without having to use a backup generator, and the time it sits idle can run the battery down, so this slight modification is a welcomed addition to an already very appealing ATS system.

This ATS is compatible with a vast range of generators that we stock. It will work with all Hyundai 3000rpm sets and all other single phase sets up to 100 Amp or 23kW output .

The ATS panel would be installed by your engineer in between the consumer unit and meter at your property. Then, the 20m communication cable is wired from the ATS panel, to your generator which can be situated up to 20 metres away. This communication cable is what allows the ATS to turn the generator on and off. However, please note this package does not include mains cable (the cable which carries power from the generator). Mains cable needs to be specified by your electrician and sourced accordingly.

This package ensures that even when you are at work, on holiday or away from your home/office, in the event of a power cut your appliances stay on.

• 100Amp ATS Panel
• 20metres of communication cable to link the generator to the ATS panel to allow it to be turned on and off via the ATS panel
• 3000RPM ATS plug
• 12V Battery Charger
• Digital signal receiver (ATS module) to allow the generator to pick up the signal from the ATS to turn on and off
• Complete automatic transfer package for use with Hyundai 3000rpm diesel generators
• Automatically transfers the source of power from the mains to your generator
• Fitted with a battery charger to ensure your generator is ready to work even after a long period of inactivity
• 3 Pole, 100Amp
• Single Phase
