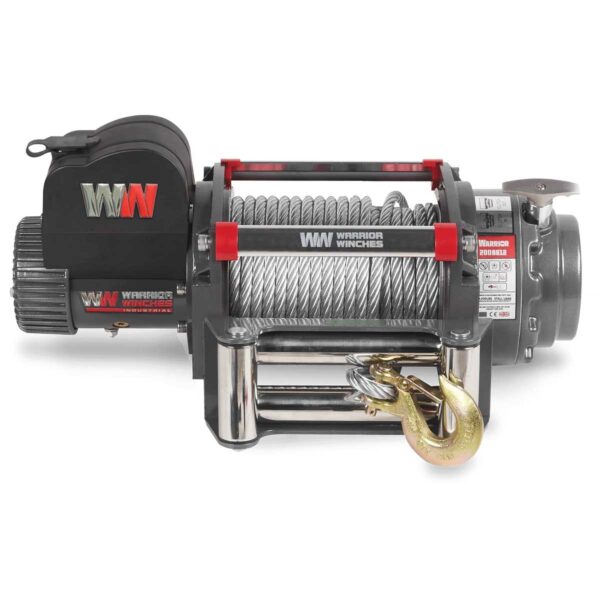

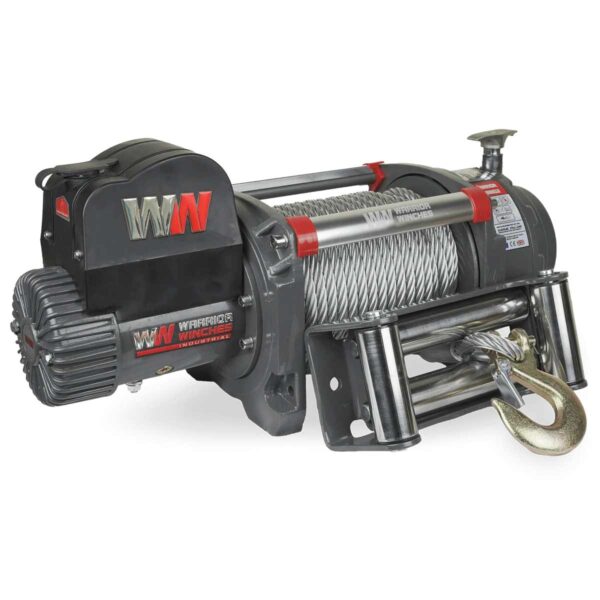

Samurai 20000 Electric Winch 24v Steel Rope

Price includes VAT & Delivery.
Order before 1pm for Express Delivery
(UK Mainland Only) Exclusions Apply*

£1,145.99 inc VAT

Out of stock

Payment logosIwoca logo

5 Years Warranty

  • Finance
  • Free Delivery

Introducing the colossal Samurai 20000lb Winch. Designed for the toughest of applications & tested in the most extreme environments imaginable, this great piece of kit boasts a massive 7.5 hp Series wound motor, which is housed in full steel supports, ensuring this immense Warrior is ready for any battle.

This 24v Beast comes packed with all the features you would expect from the Samurai Range, the motor and gearbox are fully double sealed, the high spec motor boasts brass internals, all the external fittings including the roller fairleads are stainless steel & the smooth planetary gearing is full steel.

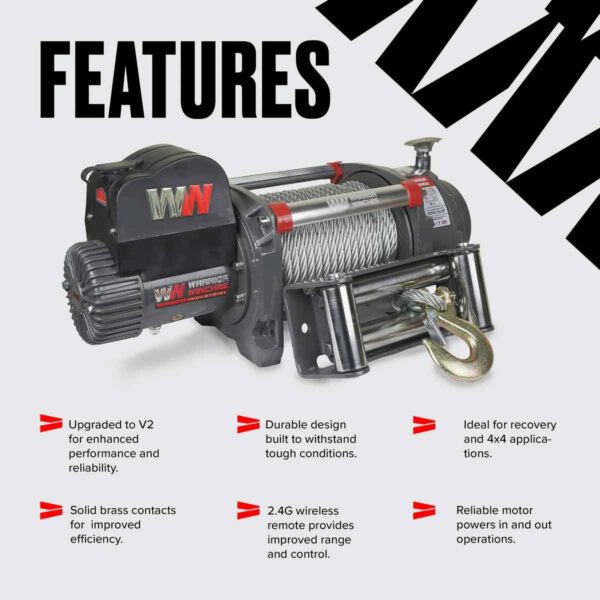

  • All Brass (no corrosion) Series Wound Motor
  • Double Sealed Motor
  • Sealed Waterproof Contactor
  • Sealed 3 Stage Planetary Gears
  • Contactor Cover for Added Protection

Whats In The Box

  • Samurai Winch
  • Heavy Duty Stainless Steel Fairlead
  • Steel Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • 3/8 Hook
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)
ManufacturerWarrior WInch
Product Code200SS24

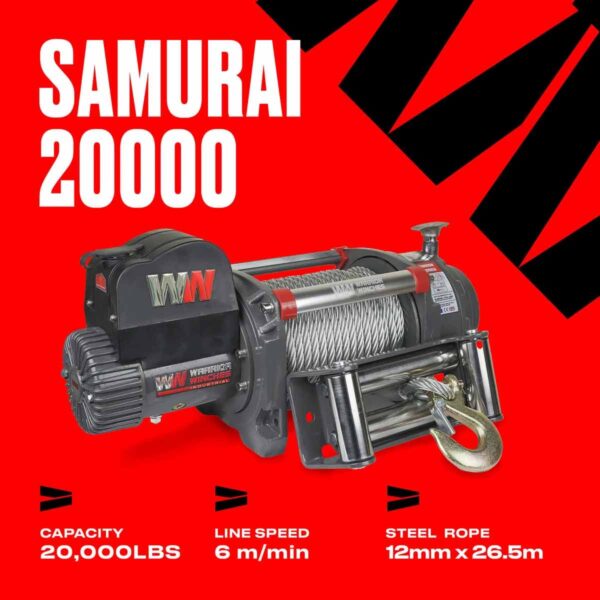

Rated Line Pull20000 lbs
Motor Type24V: Input: 8.6hp / 6.4kW; Output: 4.4hp / 3.3kW
Rated Volt24
ClutchManual
Gearing430:1
Gearing SystemPlanetary
Braking ActionAuto in the drum
Drum Size (Diameter x Length)89.0 x 217.0 mm
ControlsWired Remote
Cable MaterialSteel
Cable Size (Diameter x Length)12.0 mm x 26.5 m
FairleadRoller
Mounting Pattern254mm x 114.3mm / 254mm x 165.1mm

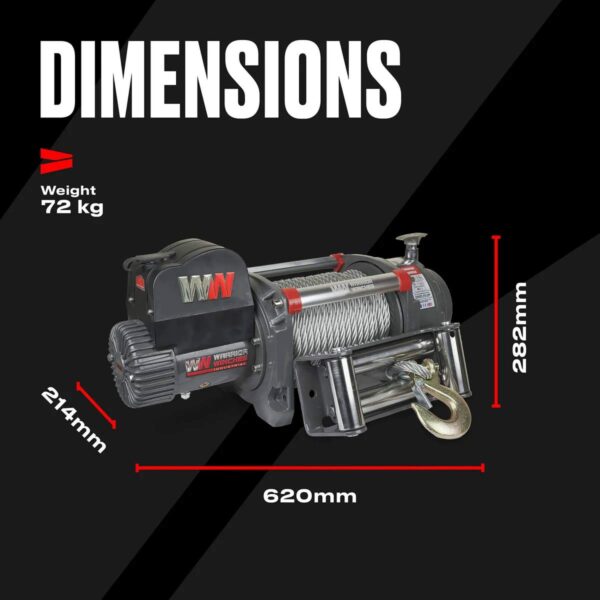

Dimensions620 x 214 x 282 mm
Weight72.0 kg
CertificationCE, UKCA
