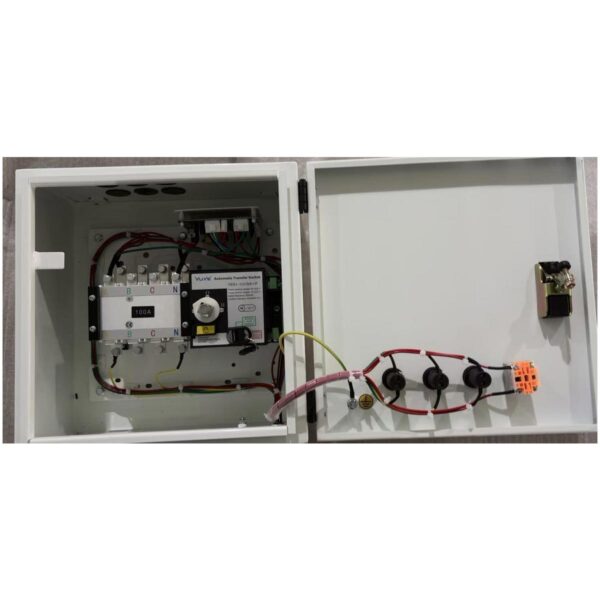

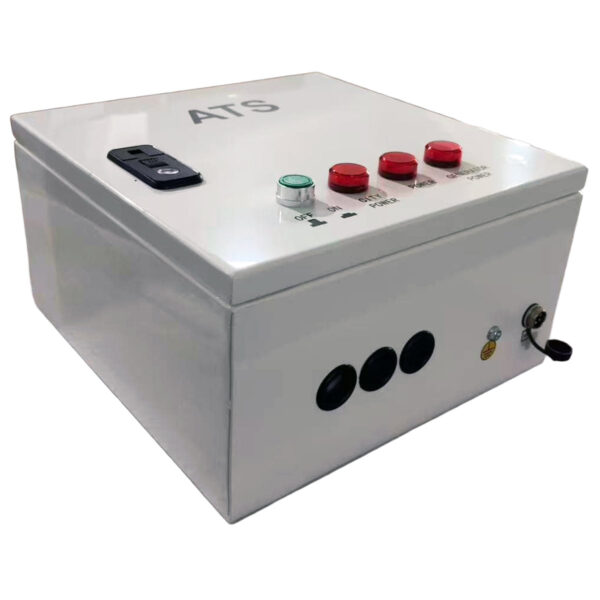

Senci Diesel 100A Single Phase ATS (Automatic Transfer Switch)

The Senci 100A Single Phase Automatic Transfer Switch is designed to provide reliable backup power control for diesel generators fitted with an ATS input socket. Built for simple installation and dependable operation, this ATS panel automatically monitors incoming mains voltage and starts your generator when a power loss is detected, ensuring essential equipment stays running.

Using micro-computer controlled switching technology, the unit constantly monitors the mains supply and seamlessly transfers power between utility and generator when required. When mains power returns, the ATS switches back automatically and safely shuts the generator down after a short cooldown period.

Ideal for domestic or light commercial applications, this ATS panel helps protect vital systems such as alarms, heating, refrigeration and other critical loads during outages.

Operation & Compatibility

The ATS panel is typically installed between the mains supply and consumer unit, allowing automatic switching during a power failure. When mains voltage drops, the ATS sends a start signal to the generator and transfers load once stable output is confirmed. When mains power is restored, the system switches back and stops the generator automatically.

Suitable for diesel generator models with ATS input sockets, including:

• SCD11000SE
• SCD18000SE

Important: Generator size determines the available output to your property or equipment. Always match the generator capacity to the total load requirements.

Key Features

• 100A rated breaker suitable for household incoming supply
• Automatic generator start and stop based on voltage detection
• Single phase ATS panel with automatic and manual operating modes
• Built-in trickle charger maintains generator battery health when not in use
• Plug-and-play style setup with ATS input socket on both generator and panel
• 5m communication cable included
• LED status indicators: Main Power, Generator, Auto Mode and Fault
• Compatible with generators featuring ATS interface wiring

Specifications & Highlights

• Single phase automatic transfer switching panel
• Supports 200-240V single phase supply
• Wall-mounted external ATS enclosure
• Automatic battery charging function
• Manual override mode (qualified personnel only)
• Designed for stable, safe power transfer operation

Installation Notes

Professional installation is recommended. The ATS must be installed in a dry, well-ventilated location and connected according to the supplied wiring diagrams. No personnel should open or modify the unit.
