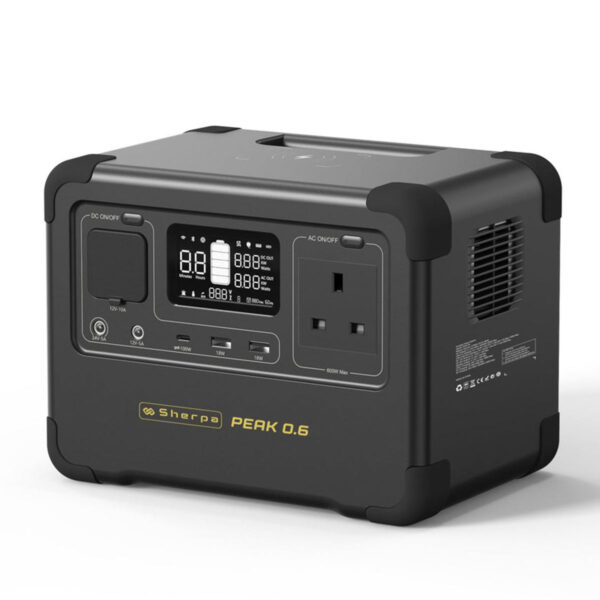

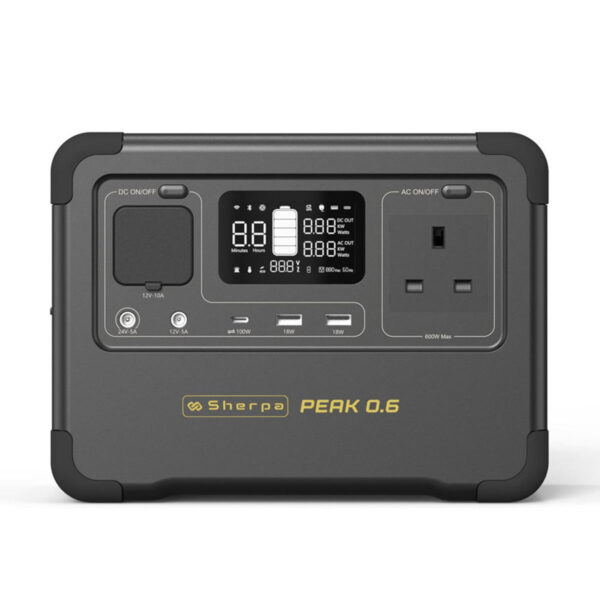

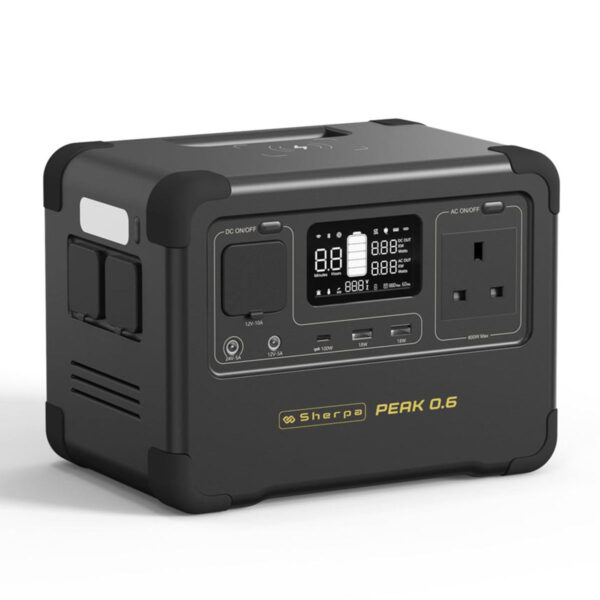

Sherpa PEAK 600W Portable Power Station 576Wh

No downloads are available for this product

Sherpa PEAK 0.6 – FAQs
1. What kind of battery is used in PEAK 0.6 and what is its lifespan?
PEAK 0.6 contains high-quality UL-certified automotive LiFePO4 battery cells,
it can retain 80% of its original capacity at 3500 complete charge cycles.

2. What devices can PEAK 0.6 power?
Please check the wattage rating of your device (on the product information label). If it is below 600W, you can use PEAK 0.6 to power it. For powering multiple devices, please add all wattage ratings together and keep the total below 600W.
Please note, that some devices with built-in motors/compressors may start at 2-4 times the rated power, which can overload the PEAK 0.6, causing temporary safety shut off.
The DC output ports are limited to a 12V, 10A or 24V, 5A load.

3. Can the PEAK 0.6 be used as a UPS (uninterruptible power supply)?
PEAK 0.6 supports UPS function with a switchover time of 8-20ms.

4. How do I calculate the PEAK 0.6 run time?
Runtime is calculated for you and is shown on the display screen at any time you have a device drawing power.
General equation for run time = Total Capacity (576Wh) x 0.85 (Depth of Discharge) / Load (Device rated power-Watts)

5. Can the PEAK 0.6 be charged while discharging?
Yes, It can be charged and discharged simultaneously by mains or DC power.

6. Does the PEAK 0.6 support dual charging?
Yes, the PEAK 0.6 does support AC and DC charging simultaneously. The DC is prioritised so you can benefit more from renewable charge sources.

7. How should the PEAK 0.6 be stored?
Please turn off the unit and store it in a dry, ventilated place at normal room temperature. Do not place
this unit near water sources or a wet/moist environment. For long-term storage, it is recommended to
discharge the battery to 30% every three months and recharge it to 60% to sustain the battery life.

8. Is there any other safety advice?
• This product is IP-rated 20 and is therefore NOT waterproof.
• Pay attention to ventilation and heat dissipation when in use.
• Ensure adequate space for the vent fans to dissipate internal heat when in use.
• Do not use the product in environments where volatile gas may be present.
• When cleaning the product, wipe it with a dry, soft, clean cloth.

9. Can this product be transported by plane?
No, it is classed as dangerous goods and must be shipped by sea and
land only.

10. Is the actual useable capacity of the product consistent with the capacity
stated in the user manual?
All batteries reserve some capacity to prevent them from permanent damage by deep discharge. The actual usable capacity of the PEAK 0.6 is therefore lower than the capacity specified in the user manual by approximately 15% so you can use up to 85%.

11. What is the storage capacity of the PEAK 0.6?
The PEAK 0.6 has a rated capacity of 576Wh and a useable capacity of approximately 490Wh.

12. Does the PEAK 0.6 support Extra Battery scalability?
Unfortunately, this model is too small for link ports so you cannot add capacity.

13. Does PEAK 0.6 have a built-in MPPT charge controller?
Yes, there is a built-in MPPT controller; use the 5521 port for 12-28V (Max 100W) PV (photovoltaic) input.

14. What kind of solar panels should I use to charge PEAK 0.6?
Total open circuit voltage: 12-28V
Max input power: 100W
Equipped with MC4 connectors.

15. Why does PEAK 0.6 not charge at the rated Max AC input power at all times?
The PEAK 0.6 has a built-in intelligent Battery Management System (BMS), that automatically adjusts the charging input in response to the battery temperature and State of Charge (SoC), thus protecting the battery and extending its service life.
