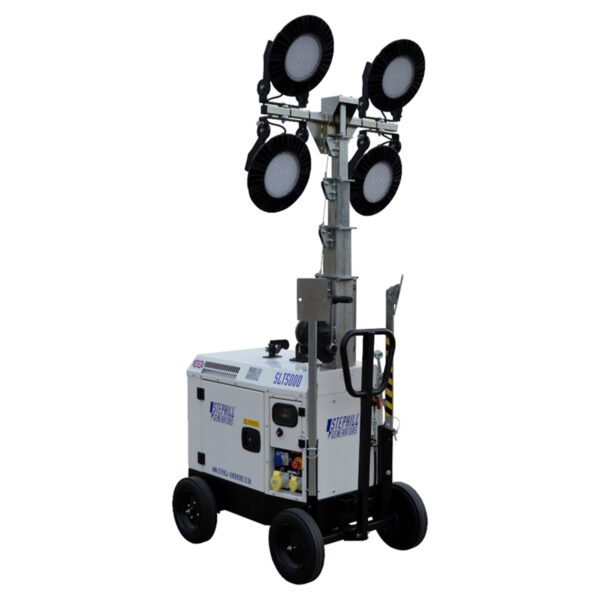

Stephill 800W LED Super Silent Mobile Diesel Generator Lighting Tower

SKU: SLT5000 Categories: ,
price promise logo

Price includes VAT & Delivery.
Order before 1pm for Express Delivery
(UK Mainland Only) Delivery Details

£8,449.00 inc VAT

In Stock

Payment logos

3 Years Warranty

  • Finance

4 x 200 watt LED lighting heads mounted on a 5.4m hand operated mast. Highly portable, quickly and easily erected by a single operator. Extremely versatile with lights operating while using either 115V or 230V AC generator outputs. Yanmar L70 electric start air cooled diesel engine coupled to a Meccalte alternator. *NEW FOR 2020 – Mast anti-collapse safety device fitted.

Road Trailer Option – Stephill 800W LED Super Silent Diesel Generator Lighting Tower Road Trailer (Fully certified to 2007/46/CE ball hitch road tow trailer kit option)

Control Panel

  • DSE 3110 control module.
  • Double pole MCB overload protection.
  • AC voltage selector switch.
  • 1 x 16A 230V BS4343 socket
  • 1 x 32A & 1 x 16A 115V BS4343 sockets
  • Overload protection for each individual socket.
  • Generator/auxiliary mains switch for the lights.
  • Emergency stop button.
  • Fuel gauge.
  • Fuel pump prime button (easy bleed upon service).
  • Lockable control panel cover.
  • Optional item – 7-day programmable start/stop timer

Standard Features

  • Lights operational with either 115 or 230V selected.
  • 4.5kVA generator dual voltage output
  •  230V auxiliary socket for mains feed to the lights.
  • Fully adjustable tilt and turn light heads.
  • Adjustable stabiliser legs.
  • Braked industrial four wheeled trolley kit.
  • Low oil pressure, high engine temperature & low fuel level shutdowns.
  • Acoustic weatherproof canopy.
  • Lifting eye.
  • Bunded fuel tank.
  • Oil drain facility.
ManufacturerStephill
Product Code SLT5000
EngineYanmar L70V
Engine CoolingAir
Prime Power4.5 kVA / 3.6 kW
Sockets1 x 16A 230V BS4343 socket, 1 x 32A & 1 x 16A 115V BS4343 sockets.
Fuel Capacity34.00 L
Run Time Lights Only52 Hours
Run time at 75% Load29 Hours
Lamp TypeLED
Lamp Power4 x 200W
Lumens100,000lm
Colour Temperature5,000 - 6,500K*
Ingress ProtectionIP66
Mechanical ImpactUK10
Mast Height5.4 Metres
Winch Load Rating900 KG
Winch CableStainless Steel
Dimensions (WxHxL)860 x 1930 x 1200mm
Fully Assembled Dimensions (WxHxL)1940 x 5400 x 1660mm
Weight400kg
Noise Level at 7m 67dB(A)
Starting Method Electric
