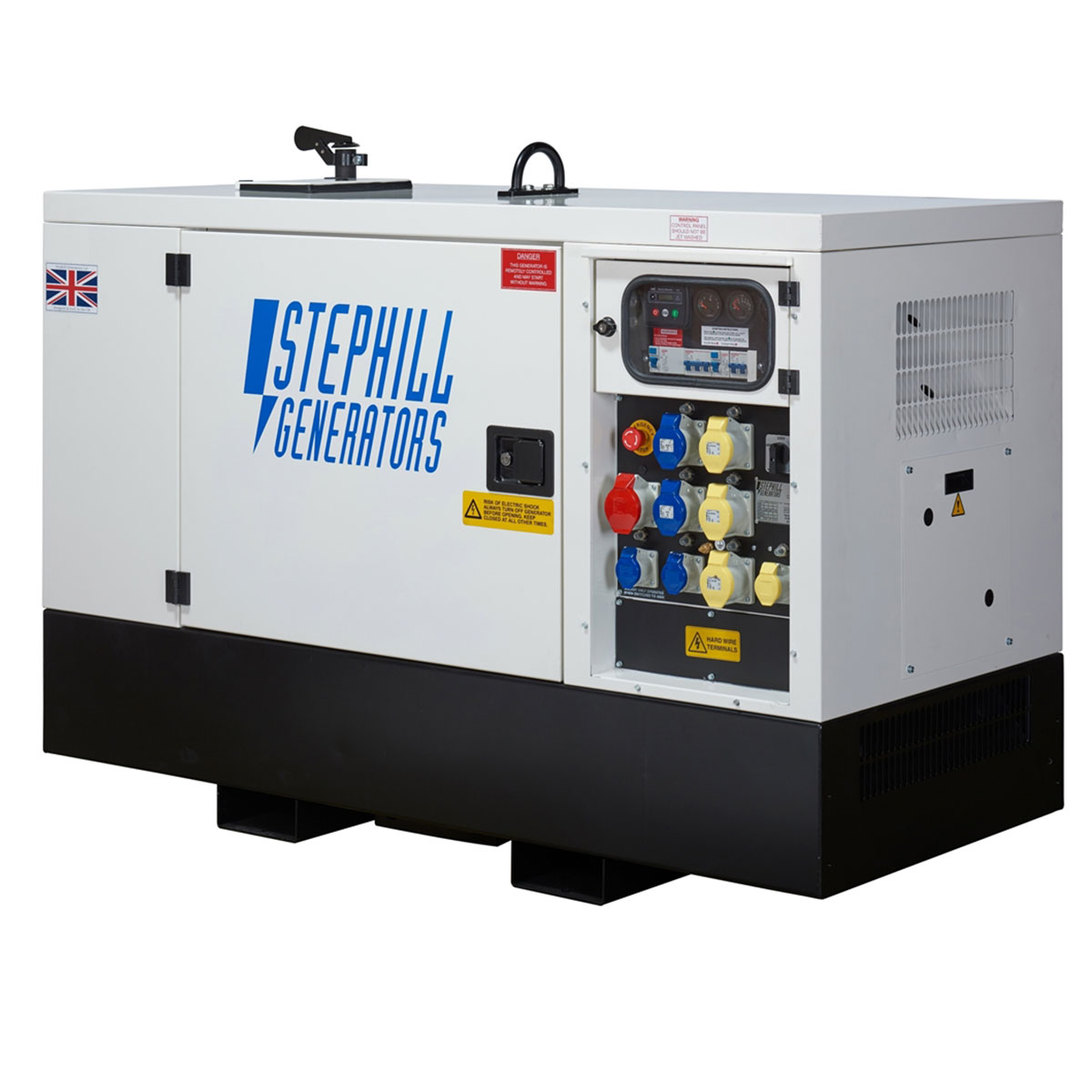

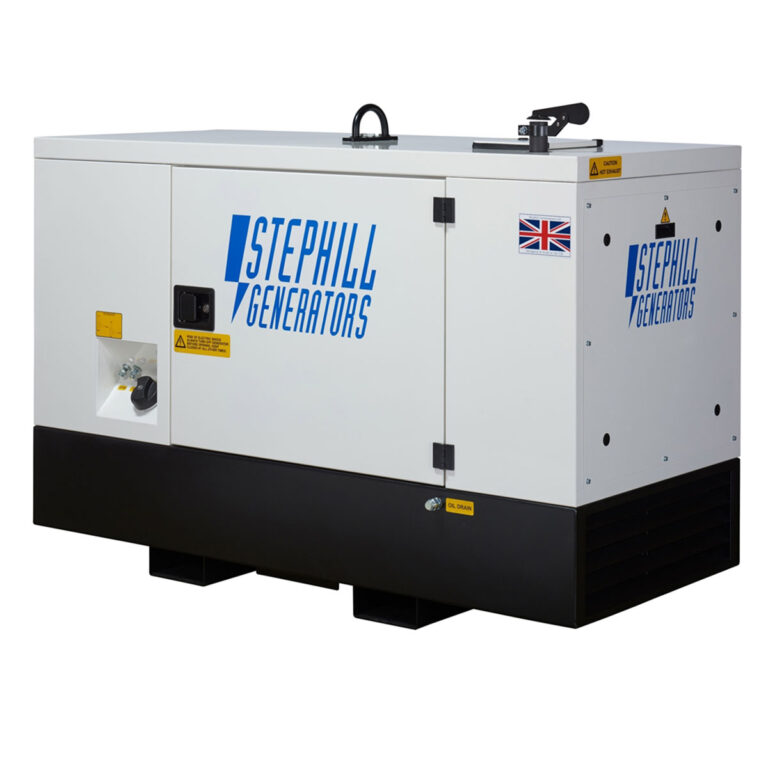

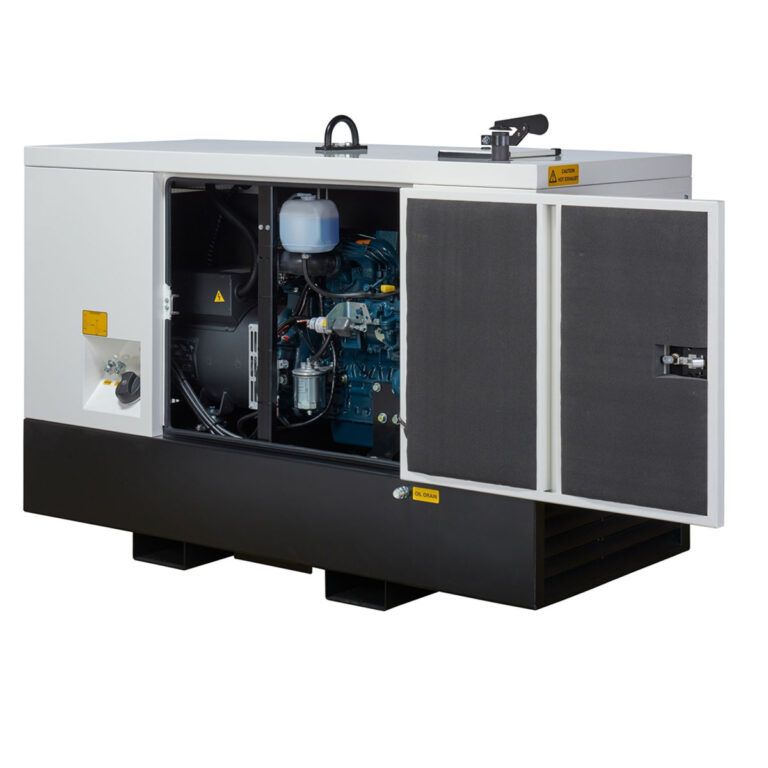

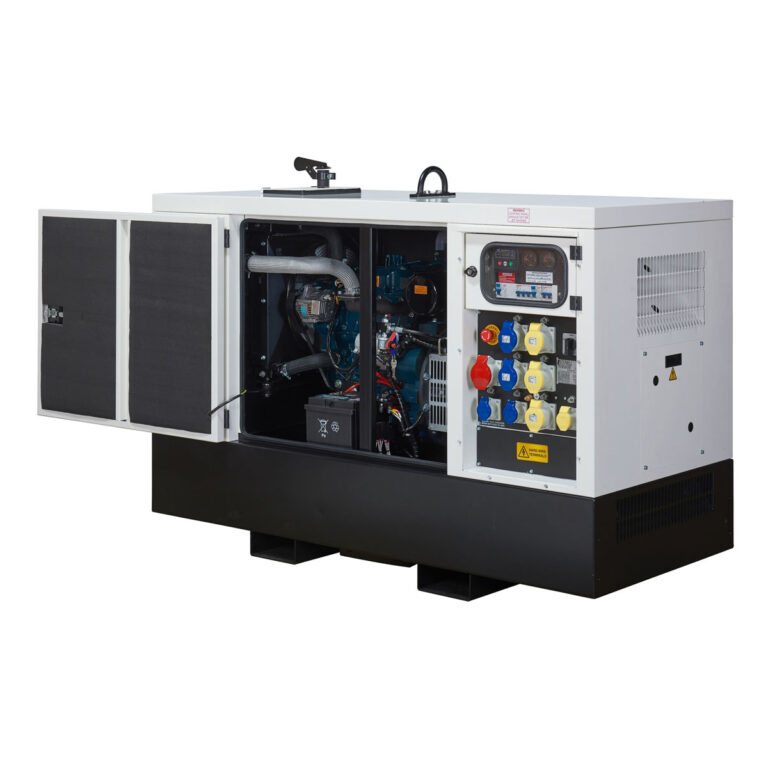

Stephill SSDK12M Super Silent Multi-Phase Diesel Generator

price promise logo

Price includes VAT & Delivery.
Order before 1pm for Express Delivery
(UK Mainland Only) Delivery Details

£12,425.00 inc VAT

In Stock

Payment logos

1 Years Warranty

  • Finance

Please be advised that Stephill generators may now have an extended lead time and there’s a possibility you may not receive them next day. If you require a Stephill Generator urgently, please contact us on [email protected] and we will check availability on next day stock then get straight back to you.**

Please note that due to the size and weight of this item, offload will be required via forklift or similar telehandler. This is not included with the delivery and will have to be organised by the customer.

  • All cabinets are made from Zintec steel to protect against corrosion.
  • 1500rpm, EU Stage V Kubota water-cooled diesel engines, complete with high engine temperature shut down, low oil pressure shut down.
  • Lockable control panel housing.
  • Deep Sea DSE3110 push button start / stop controller with 2 wire start facility.
  • Super silent with close fitting acoustic cabinets with noise level as low as 60dba, complete with large access doors for ease of maintenance.
  • Brushless AVR controlled maintenance free alternators, voltage regulation +/- 1.0%.
  • Max. Power (400V): 10.8kW
  • Cont. Power (400V): 9.6kW
  • Max. Power (230/115V): 10.1kW
  • Cont. Power (230/115V): 8.9kW
ManufacturerStephill
Product Code SSDK12M
Continuous KVA 12.00 KVA
Maximum KVA 13.50 KVA
Continuous KW 9.60 KW
Maximum KW 10.80 KW
Sockets1 x 16a 115v, 3 x 32a 115v, 1 x 16a 230v, 2 x 32a 230v, 1 x 32a 400v & 1 x 16a 230v (spurred)
Fuel Type Diesel
Run Time 41.00 hours
Noise Level at 7m 59 dB(A)
Weight592.00kg
Dimensions (WxHxL) 800 x 1270 x 1800mm
Fuel Capacity 120.00L
Starting Method Electric
Frequency50Hz
AVRYes
ATSNo
