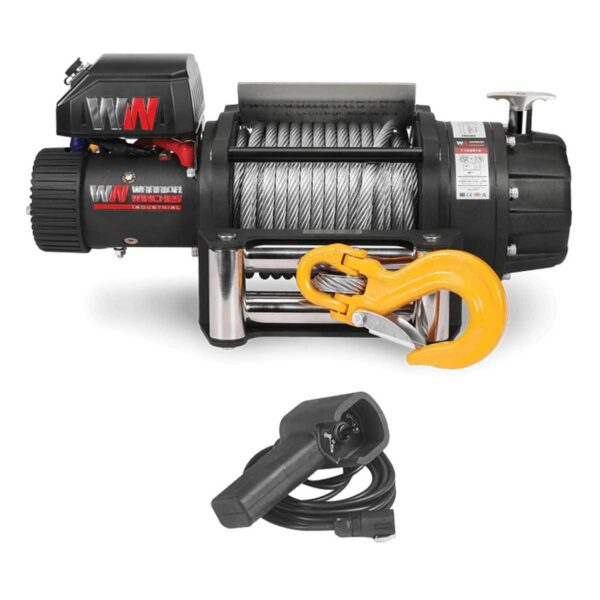

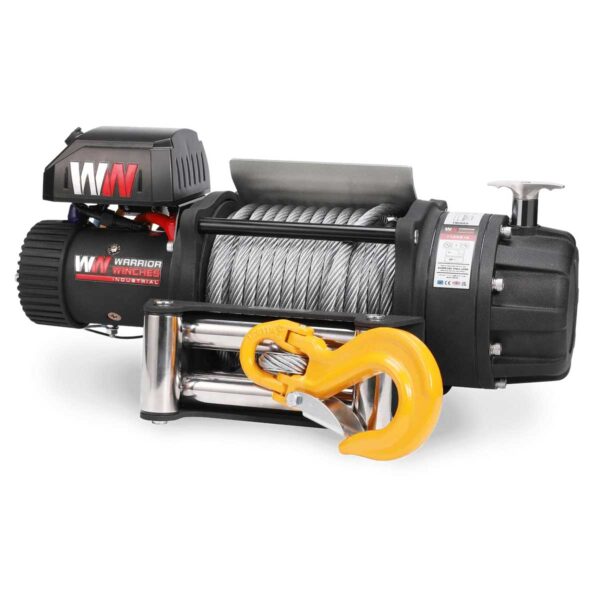

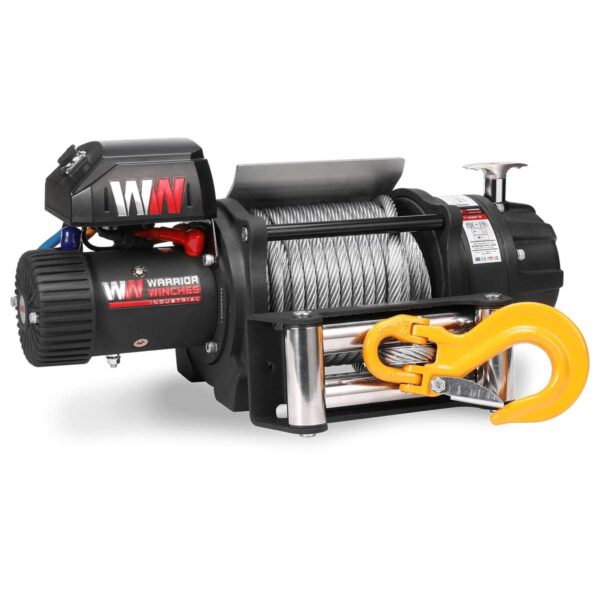

T1000 22000lb Electric Winch 24v Steel Rope

Originally engineered as an advanced military prototype, the T1000 Severe Duty Warrior Winch was built to withstand the harshest environments on the planet. Designed for extreme performance in severe climates, this winch has already proven itself in the field, earning high praise from defence experts and industry leaders alike.

After its standout debut at the Defence and Security Equipment International Expo, we made the decision to unleash the T1000 range for widespread use. Now, this battle-ready powerhouse is available for those who demand nothing but the best – whether for industrial, commercial, military, or hardcore off-road applications.

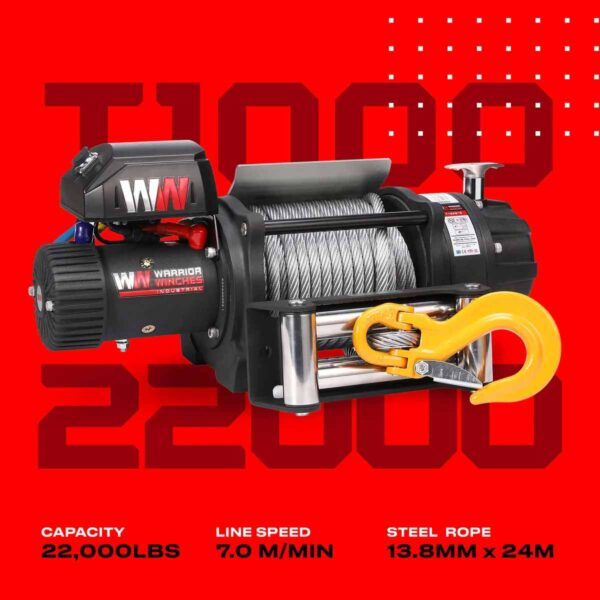

Serious pulling power when the job demands more. The T1000 22,000lb delivers up to 22,000lb (9,979kg) of rated line pull through a powerful 24V motor and hardened 3-stage planetary gearing with an extreme 450:1 gear ratio. This combination provides the torque needed to move heavy vehicles, plant and equipment when a standard recovery winch simply isn’t enough.

24V power for demanding applications. Designed around a 24V electrical system, the T1000 delivers 6.1kW of motor input power while drawing less current than an equivalent 12V system at the same output. With a maximum rated line pull of 22,000lb, it’s a serious electric winching solution for commercial vehicles, heavy-duty recovery and specialist applications where dependable performance matters.

Built for severe-duty recovery. This isn’t a winch designed for occasional light-duty work. The T1000 has been engineered around the demands of industrial, commercial, military and extreme off-road applications, with hardened planetary gearing and heavy-duty components designed to cope with high loads and challenging operating conditions.

Advanced braking that manages heat where it matters. The patented external braking system moves braking heat away from the drum, helping prevent excessive heat build-up during demanding pulls. This supports smoother operation while reducing heat-related stress on the winch and rope, giving you greater confidence when the recovery gets serious.

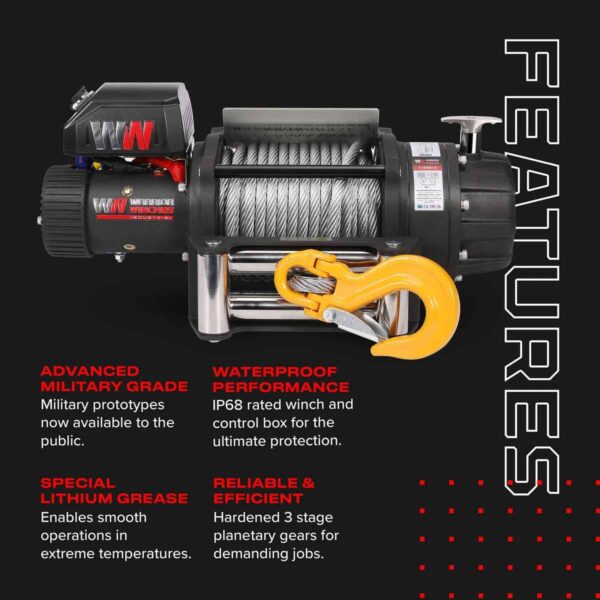

Ready for extreme conditions. Special lithium grease helps maintain performance across extreme temperatures, while the IP68-rated winch provides protection against dust and water ingress. Whether you’re working through mud, rain, dust or harsh outdoor conditions, the T1000 is engineered to keep performing when the environment turns against you.

Steel rope built for demanding applications. The T1000 is supplied with 24m of 13.8mm steel rope, giving you the durability and abrasion resistance required for demanding industrial and recovery work. A heavy-duty stainless steel roller fairlead guides the rope during operation, while the cable tensioner helps maintain controlled winding back onto the drum.

Control when you need it most. The heavy-duty wired remote gives you direct control of the winch during operation, allowing you to manage the recovery while maintaining a clear view of the vehicle and load. The manual clutch allows the drum to be disengaged for quick, controlled free-spooling when deploying the rope.

When the vehicle is heavy, the terrain severe and a standard recovery winch isn’t enough, the T1000 is built to take over. With 22,000lb of rated line pull, military-grade engineering and severe-duty protection, the T1000 22,000lb 24V Steel Rope Winch is built for heavy vehicle recovery, commercial vehicles, construction, forestry, agriculture, industrial applications, military use and hardcore off-road work. Backed by a 5-year warranty, it’s engineered for the jobs where serious pulling power and dependable performance are non-negotiable.

• Stay protected against dust and water – IP68 military-grade protection helps shield the winch from harsh environmental conditions, giving you dependable performance when working outdoors.
• Keep working through extreme temperatures – Special lithium grease helps maintain performance in severe temperatures while reducing wear and supporting long-term durability.
• Generate serious torque when you need it – Hardened 3-stage planetary gearing delivers the high torque and efficiency required to handle heavy loads reliably.
• Extend the life of your rope – The external braking system moves braking heat away from the drum, helping maintain smooth operation and reduce heat build-up on your rope during demanding pulls.
• Protect your winch during demanding pulls – Overload protection helps prevent damage caused by excessive loads, providing additional protection when the winch is being pushed hard.

Whats In The Box

• T1000 Winch
• Heavy Duty Stainless Steel Fairlead
• Steel Rope
• Heavy Duty Hook
• Heavy Duty Wired Remote
• Cable Tensioner
• Stainless Steel Mounting Hardware (nuts/bolts)
