Pramac PWB 200W Solar Panel

Pramac’s PWB Solar Panel can keep your portable power station charged while away from a mains source of power whenever there is sunlight available.

Built with Grade A monocrystalline silicon, the PWB Solar Panel can convert up to 22% of sunlight into solar energy, charging your solar generators even in bad weather.

The easy setup of the foldable panel, with its MC4 connectors included, means you can get your portable power station charging in quick time.

At 200W, a single solar panel can recharge a PWB1200 to 80% in as little as 4 hours and a PWB2400 in just 8 hours (with best solar lighting conditions). Double up the capacity with 2 solar panels and the charging times drop by up to 50%.

At just 8.4kg and measuring 635 x 564 x 45mm when folded up, the PWB Solar Panel is the perfect accompaniment to your Pramac PWB Portable Power Station.

Panel Information

• Max power: 200W
• Grade A monocrystalline silicon
• Open-circuit voltage: 24V
• Working voltage: 20V
• Short-circuit current: 10.5A
• Working current: 10A

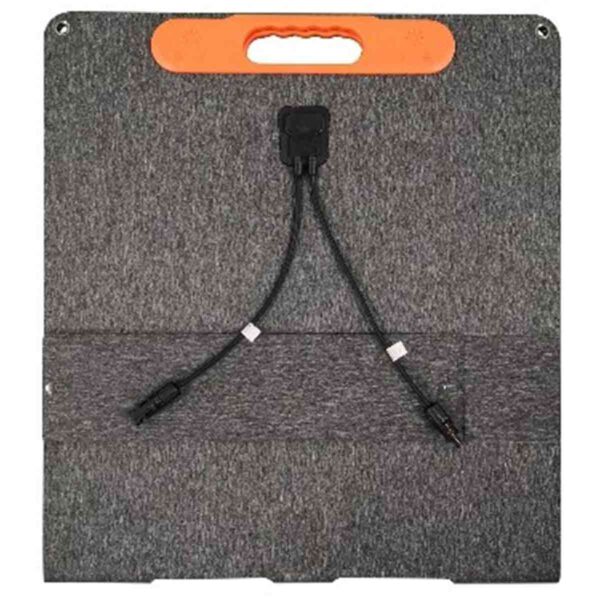

• Output interface mode: MC4 output cable (1m)
• Number of folding panels: 4
• Conversion efficiency: 22%

General Information

• Warranty: 1 year Standard Warranty
