Single vs Three-Phase Generators Explained
January 21, 2025 | Nate CordThere are two main types of generators: single-phase and three-phase. While both single and three-phase generators use alternating current (AC) and power cycles, each uses a different number of conductor wires to provide power.
This means that single and three-phase generators have unique advantages and setbacks, depending on what you are trying to power and for how long. This guide will further explain the differences between single and three-phase generators, including what applications each generator tends to be used for, to help you decide which generator is best for your requirements.

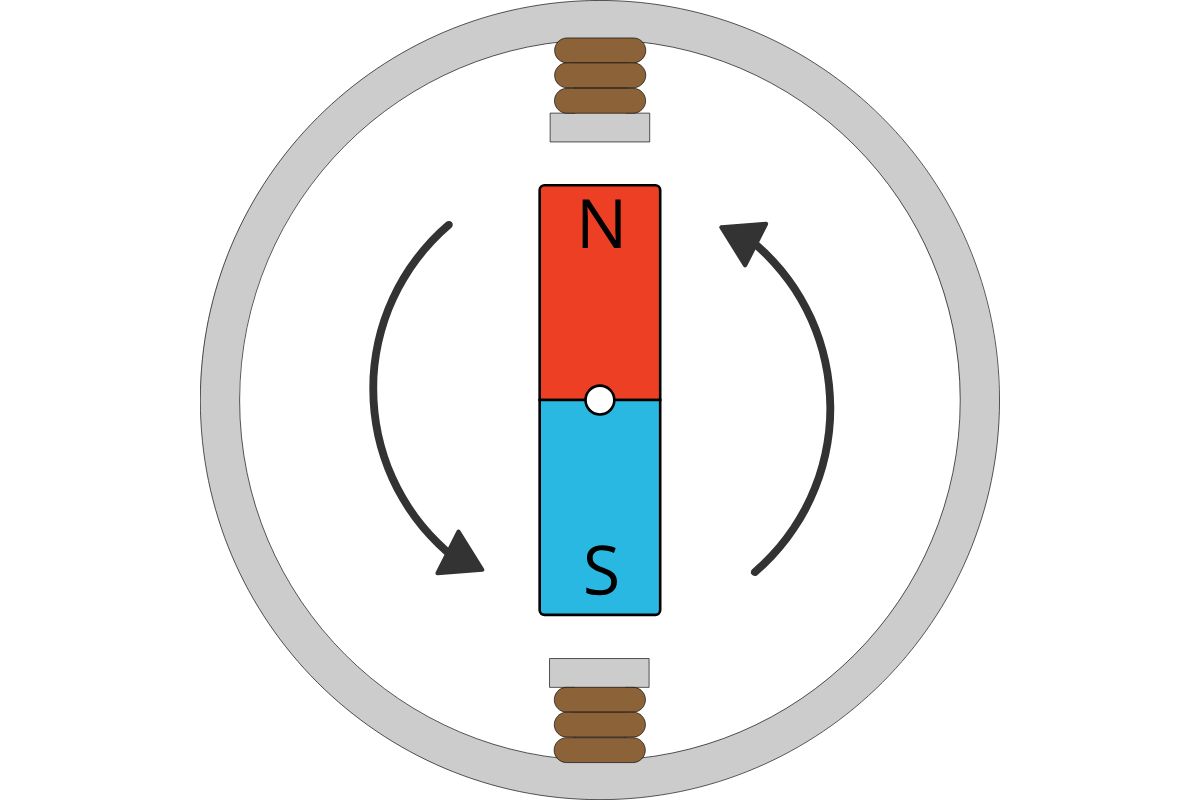

What is a Single-Phase Generator?
Single-phase generators produce power using a single alternating current in Hertz (Hz), with the voltage and current changing direction twice per cycle. It delivers power through two wires: one live (phase) and one neutral. The single current alternates (reverses direction) between positive and negative voltages — which fluctuate from 170 degrees to -170 degrees — to create a consistent but lower-capacity power output.
Thus, it can be difficult to produce a larger amount of power from a single-phase generator, as the wave constantly rises to a peak and then dips back down. However, single-phase power systems are more accessible and easier to install, with lower initial upfront costs.
This makes single-phase generators most suitable for low to moderate power demands, such as camping, outdoor events, construction, small business or residential homes.

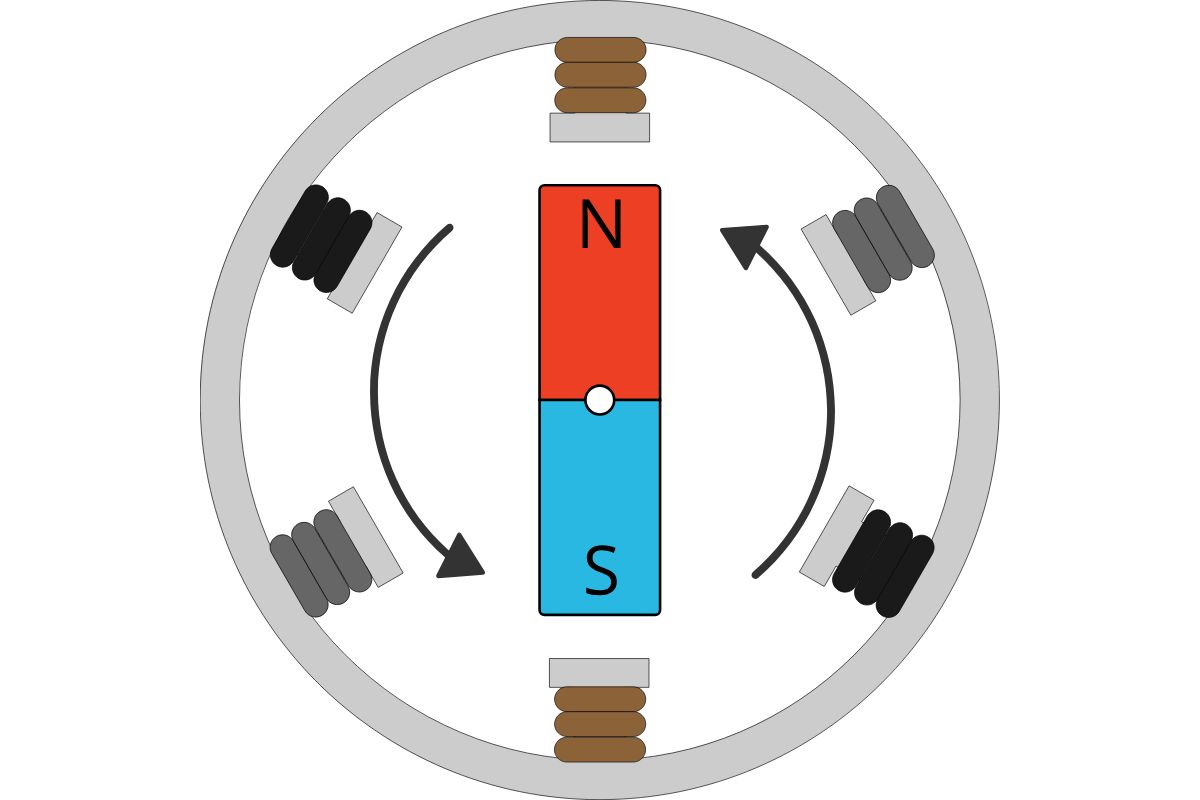

What is a Three-Phase Generator?
A three-phase generator supplies power through three different AC waveforms (three different conductive wires and a neutral grounding wire). These wires are all offset by 120 degrees and synchronized so that they don’t touch or cross paths. You can think of this like three separate single-phase generators operating slightly apart from one another.
This system ensures that one of the three waves is always at peak power, providing a more even and continuous output (less fluctuation than single-phase systems). In other words, when one current is at its lowest, another will always be at its highest, creating complementary waves.

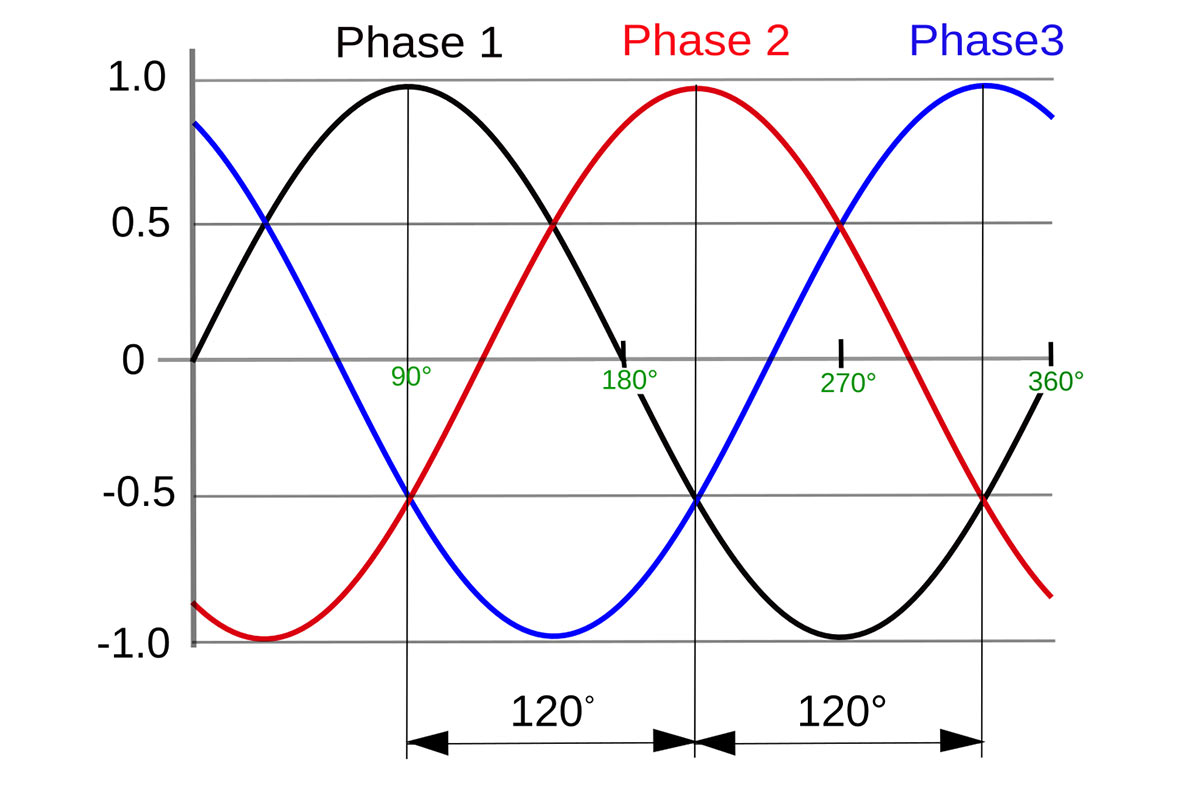

Normalized waveforms of the instantaneous voltages in a three-phase system in one cycle with time increasing to the right, via Wikipedia.
Three-phase generators provide more voltage compared to single-phase generators (415 compared to 230V) which is 180% more when comparing two models of the same size.
In addition, while the single-phase motor has one pair of poles, a three-generator motor has three. This makes the torque absorbed by the three-phase generator “rounder” and therefore, the mechanical transmission system, bearings and other parts not only experience less wear, but are also more balanced.
Thus, three-phase generators are most suitable for higher power demands and heavy-duty applications, such as large commercial buildings, industrial facilities, and agricultural projects, or to power heavy equipment.
However, the downside is that they can be more expensive upfront and challenging to maintain and repair as they have more parts that can break down.
Single-Phase vs Three-Phase Diesel Generators
Whether you need a single or three-phase generator depends on your needs. For a small amount of power, such as for a small business or house, a single-phase generator will suffice. However, for larger applications, such as powering hospitals, warehouses or other large premises, a three-phase generator will be best. To help you decide, you should consider:
1. Your Power Requirements
Calculate the total wattage required for your appliances and equipment, and whether a single or three-phase generator will be able to handle the load.
2. Type of Equipment
Consider the type of equipment you want to power. Single-phase generators are sufficient for household appliances, small offices and portable tools, for example, whereas three-phase generators are ideal for industrial machines, manufacturing, and large HVAC systems.
3. Future Expansion
Plan for potential growth in power demand to avoid outgrowing your generator’s current power output. However, keep in mind that using a three-phase generator for single-phase applications needs careful calculation to prevent too much imbalance on the alternator, which can otherwise cause damage
And here’s a reminder of the key differences between both types.
Single-Phase Generators | Three-Phase Generators | |
---|---|---|
Power Output | Single AC waveform. | Three AC waveforms. |
Efficiency | Less efficient. | Highly efficient. |
Applications | Domestic, residential, small businesses, mobile catering, portable systems and other small-scale projects. | Industrial applications, commercial properties and other large-scale projects and machines, such as factories, hospitals and data centres. |
Cost | Lower upfront cost. | Higher upfront cost. |
Lifespan | Typically a shorter lifespan. | Typically a longer lifespan. |
FAQs
What About Multi-Phase Generators?
A multi-phrase generator is a type of generator that produces electrical power in more than one phase. In other words, it can seamlessly switch between voltages, allowing you to tailor your output to meet your specific requirements.
Compared to single-phase generators, multi-phase systems are more efficient for distributing and using electricity, especially for high-power applications.
How to Check Phase Rotation on a Generator

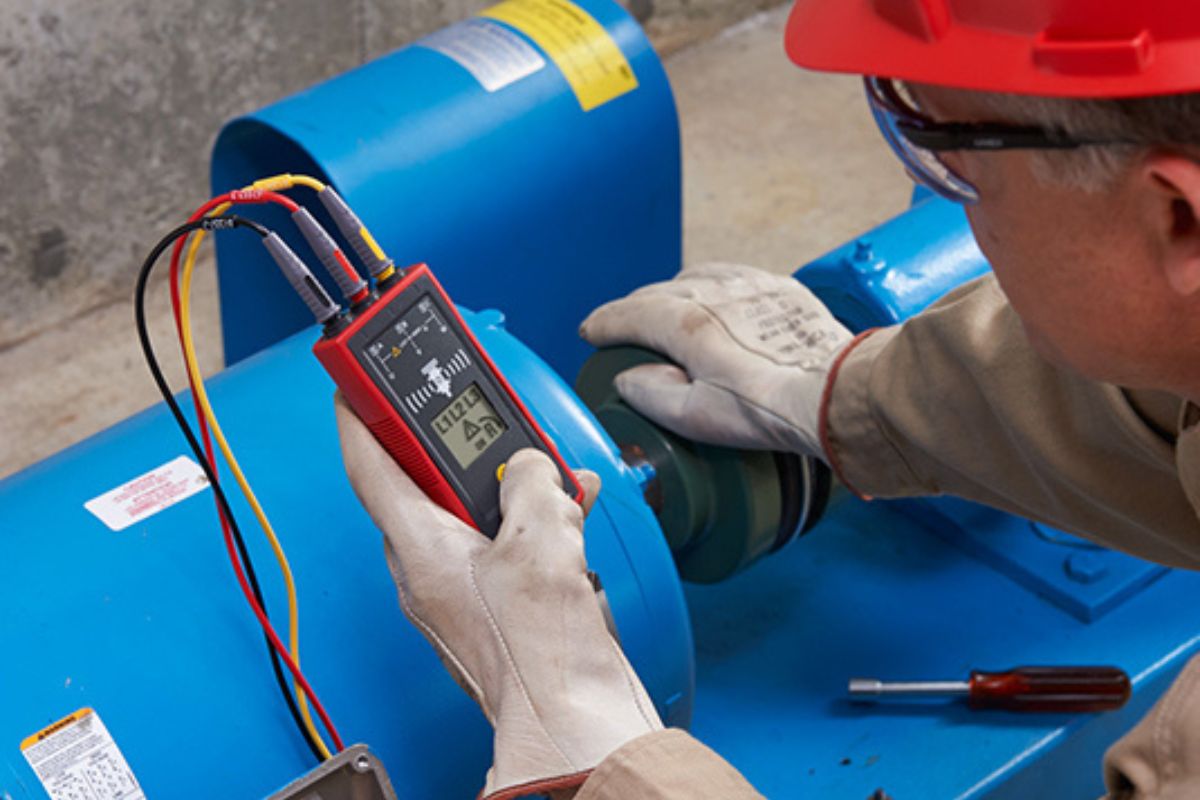

Phase rotation on a generator is the order in which the voltage waveforms of a three-phase system reach their peak values. For a three-phase system, there are only two possible phase sequences: 1-2-3 and 3-2-1, corresponding to the two possible directions of alternator rotation. To determine the phase rotation of a three-phase system, a sequence tester or a phase rotation meter can be used. These devices can detect the sequence of the voltage waveforms and indicate whether the system is rotating in the correct direction.
Can a Single Phase Generator Be Converted to Three Phase
Yes, a single-phase generator can be converted to three-phase power using a rotary phase converter (RPC) or a variable frequency drive (VFD). However, this tends to cost more than just getting a three-phase generator.
